BeakerBot

What BeakerBot is and what it will not do

BeakerBot has one job on purpose: help you use the software and work with your own content more efficiently. Its generative scope is narrow and deliberate. It rewrites, expands, and polishes text you already wrote, summarizes content already in your folder, relays tool outputs exactly as the engines return them, and operates the app by navigating pages and clicking controls for you. It can run every statistical test in the Data Hub, every computation in the sequence workbench, every cloning assembly, and every summary query against your records, and relay the results as facts.

What it will not do, regardless of how you ask: interpret your experimental results, draw a scientific conclusion from your data, generate a hypothesis, suggest a next experiment, or write a discussion section from nothing. If you ask BeakerBot what your data means, it declines in one sentence and offers what it can do instead, such as running the relevant analysis, expanding a draft interpretation you wrote, or summarizing the data structurally. This boundary is encoded in the system prompt and applies to every turn.

When a paper figure is attached, the same scope applies to images. BeakerBot describes what is visibly in the figure and gives presentation feedback on color, axis labels, font sizes, and legend placement. It does not interpret the scientific trend or conclude anything from the data shown.

The chat composer

The composer is a text area at the bottom of the BeakerBot panel. You type your request there and press Enter or the send button to begin a turn. Beyond free text, the composer supports two structured input affordances that let you attach context without copying and pasting content.

@object references

Typing @ opens an inline picker above the composer. The picker draws from the same cross-type global object index that powers BeakerSearch, so it covers every record type in your folder: experiments, projects, methods, sequences, notes, Data Hub tables, molecules, purchases, inventory items, and phylogenetic trees. As you type after the @, the list filters by prefix and substring match over names, sorted by recency. Selecting a row stages the object as an attached reference that travels with your message. BeakerBot reads the attached reference and can call the matching read tool to fetch the object's content, so you can write "Summarize @my qPCR method" or "Make a bar chart from @glucose growth table" and the assistant resolves to the real object without ambiguity. Keyboard navigation (up and down arrows, Enter to select, Escape to close) keeps focus in the composer while you arrow through results.

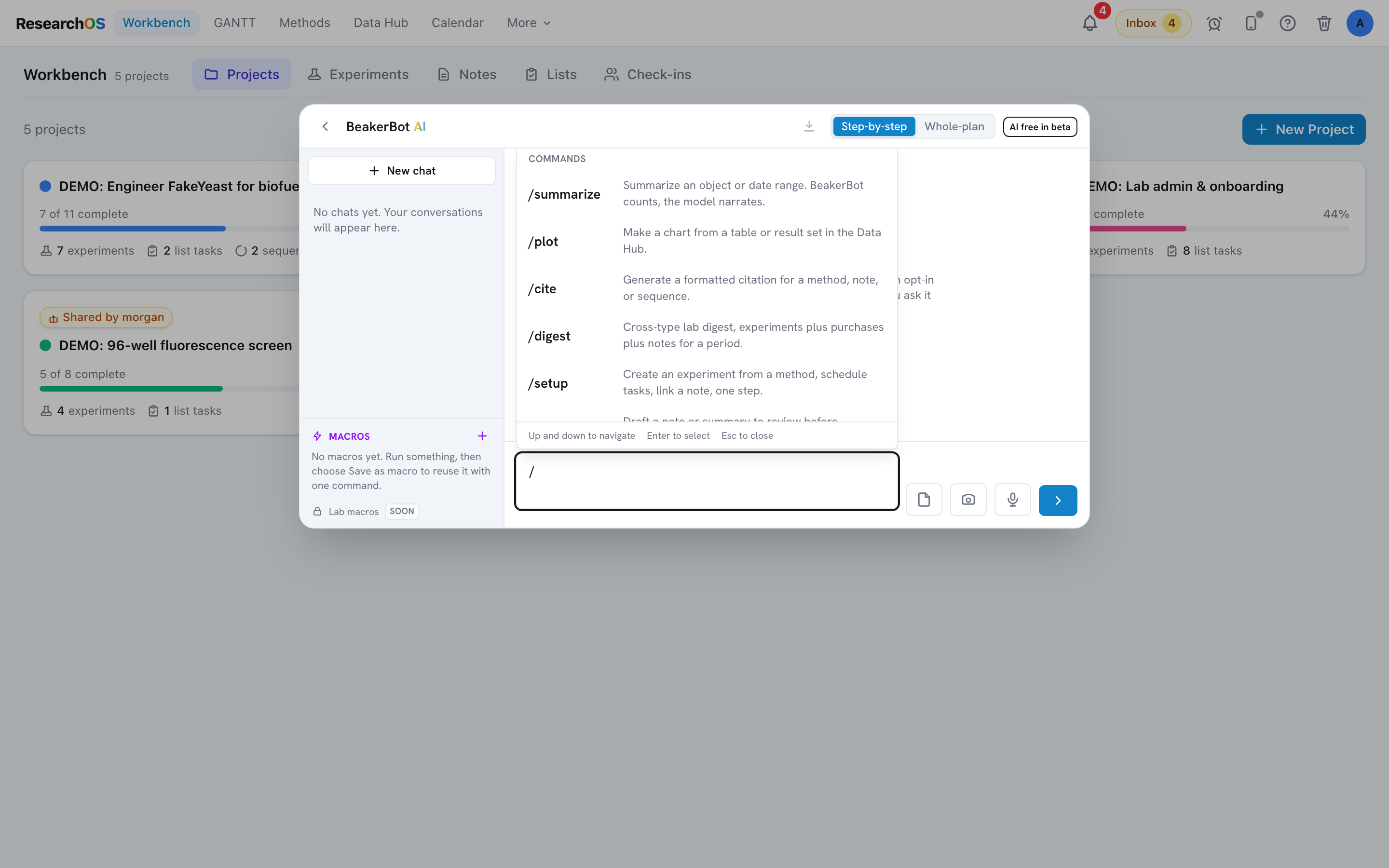

/slash-commands

Typing / opens a command menu above the composer. The menu has two sections. The first section is a curated set of six commands, each of which pre-fills the composer with an intent phrase that maps to a real BeakerBot capability.

• /summarize prefills "Summarize " and is the entry point for structural roll-ups of experiments, notes, purchases, projects, or inventory.
• /plot prefills "Make a chart from " for generating a Data Hub figure from a table.
• /cite prefills "Generate a citation for " to format a reference for a method, note, or sequence.
• /digest prefills "Give me a lab digest for " for the cross-type week-in-review across experiments, notes, and purchases.
• /setup prefills "Set up an experiment from " to create an experiment, attach a method, and scaffold tasks in one approved action.
• /draft prefills "Draft a note about " for a gated write-to-note flow.

The second section of the menu lists your saved workflow macros. Selecting a macro from the menu does not pre-fill the composer, it stages the macro for replay directly. See the Workflow macros section below.

Voice input

A microphone button in the composer toolbar activates voice dictation using the browser Web Speech API. While the session is active, the button is lit and the assistant records continuously, so a bench scientist can keep their hands on the experiment and narrate a note or command out loud. Each final transcript fragment is appended to the existing composer draft, joined by a space, so you can mix typed and spoken text in one message. The mic button is hidden on browsers where the Web Speech API is unavailable (Firefox, Brave, some older Safari versions). On supported browsers, pressing the button again or sending the message stops the recording session.

How BeakerBot acts

Most reads are immediate. BeakerBot calls a tool, gets the result, and writes its reply, no confirmation needed. For actions that change your data, the flow is different.

Read tools

Read tools run straight away: looking at the current page, searching your work, listing records, running statistical analyses, computing a Tm, running a cloning assembly, searching PubChem, searching the literature. None of these prompt for approval because none change your files. Statistical analyses do create a stored result in the Data Hub, but the result is version-controlled and reversible, and the act of asking plus picking the groups constitutes the consent.

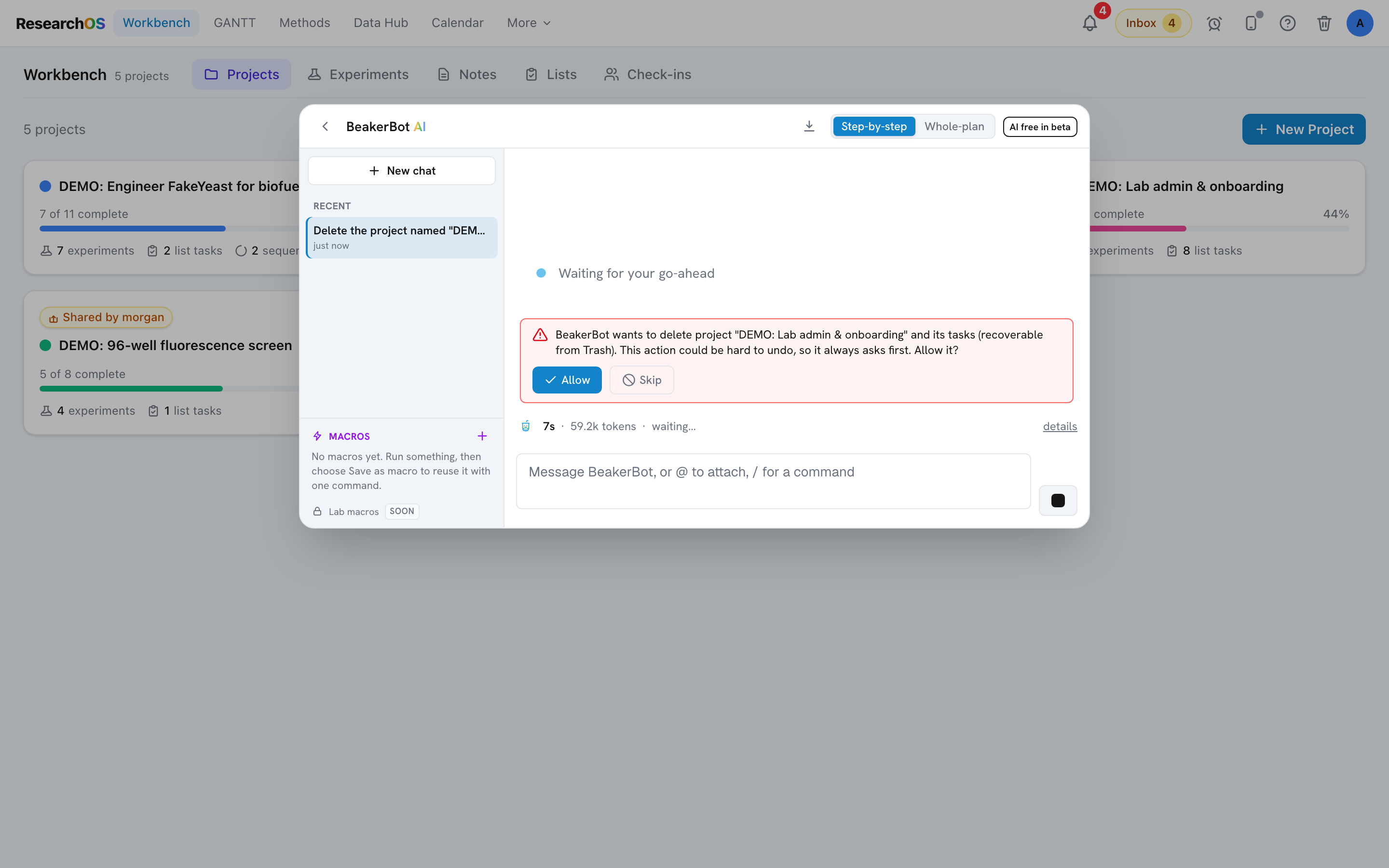

Gated write tools

Any tool that creates, modifies, or deletes a record shows an approval card in the chat before executing. The card shows exactly what will be written, the name, the content, the affected record. You click Approve or Reject. On Approve the tool runs; on Reject nothing happens and BeakerBot acknowledges the choice. This is the standard pattern for all CRUD operations, note writes, macro runs, and experiment creation.

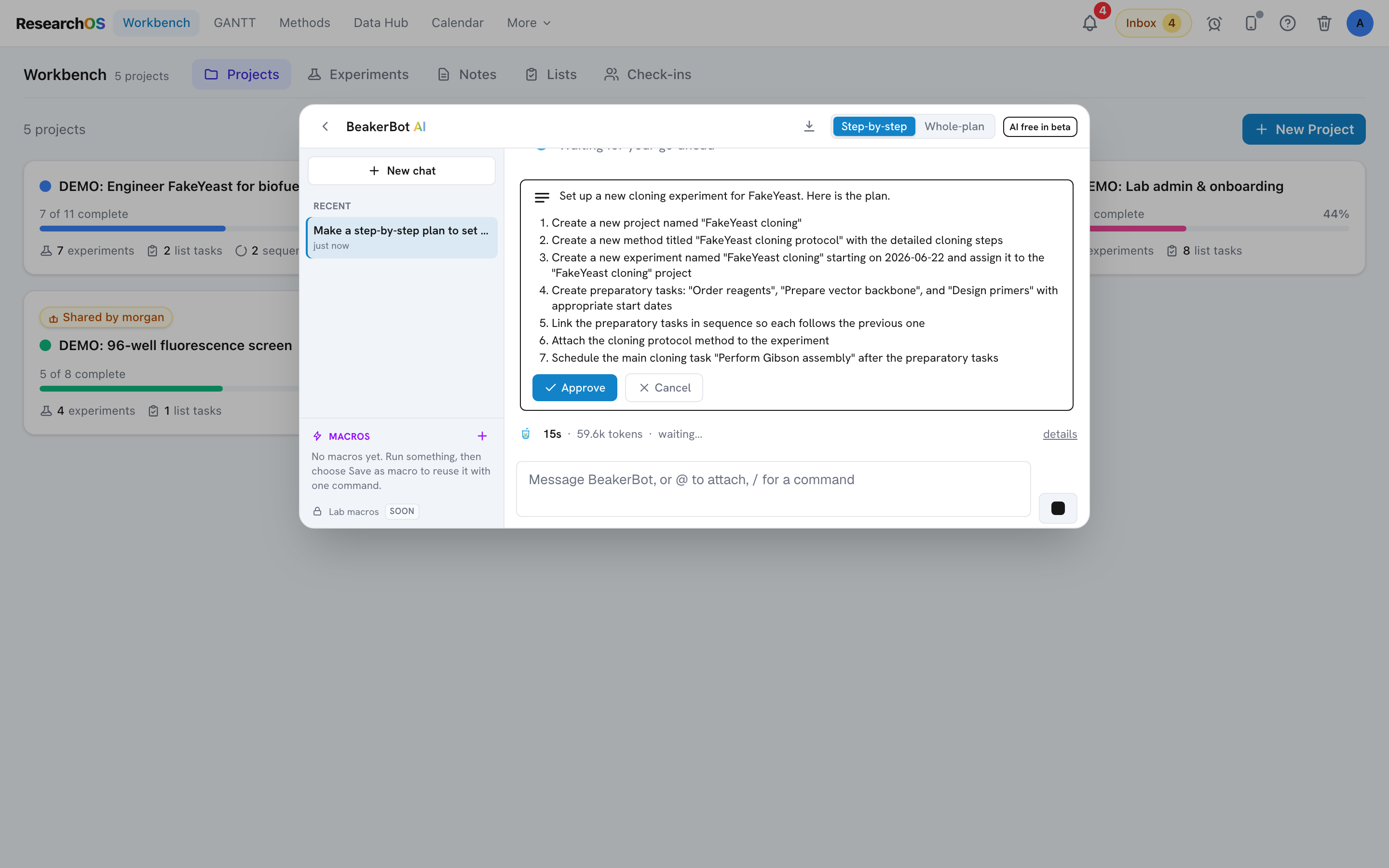

Plans (propose_plan)

When a request involves more than one step, BeakerBot proposes a plan before it navigates or clicks anything. The plan card lists the steps as short human sentences and presents a single Approve or Cancel. On Approve, BeakerBot executes the steps in order, reading the page before each click so element references are always fresh. A genuinely destructive or outward-facing step (delete, send, share) still shows its own confirm at the moment it runs, even inside an already-approved plan.

BeakerBot never writes out a numbered list of steps in its prose reply text for something it is about to do. A prose list has no Approve button and cannot be stopped or resumed. The only way BeakerBot presents a plan is through the plan card.

Creating and editing records (CRUD)

BeakerBot can create, update, edit the content of, and delete every core object type in your folder. Every write goes through a gated approval card before anything changes. Every delete is a soft delete that moves the object to the Trash with a 30-day recovery window, never an immediate erase.

Create tools

• Methods: create_method authors a new markdown protocol in your Method library. BeakerBot formats and tidies the protocol text you provide, never invents steps you did not give it. If you ask it to create a method without giving the steps, it asks rather than fabricating.
• Projects: create_project makes a new project container with a name and optional tags.
• Notes: write_note in create mode drafts a note from the conversation or from tool outputs and shows you the draft for approval before writing.
• Sequences: create_sequence saves a sequence you provided (BeakerBot never fabricates bases).
• Molecules: create_molecule saves a molecule from a SMILES string you supply, with formula and molecular weight derived by the on-device RDKit engine. import_molecule pulls a compound from PubChem by CID.
• Purchases: create_purchase logs an order with item, quantity, vendor, and optional project.
• Experiments and tasks: create_experimentschedules a new experiment, create_experiment_chain links a sequence with finish-to-start dependencies, and setup_experiment creates an experiment, attaches methods, creates prep tasks, and scaffolds the Results file in one approved action.

Update and metadata tools

• update_method renames a method, sets its tags, or moves it to another folder (metadata only, not the protocol body).
• update_project renames a project, sets its tags, or archives and unarchives it.
• update_task renames, marks complete, or moves a task.
• update_sequence renames a library sequence.
• update_molecule renames a molecule.
• update_note renames a note.
• update_purchase changes an order's item name, quantity, vendor, price, or status (needs ordering, ordered, received).

Content-edit tools

These tools change the body of a record, not just its metadata.

• edit_method changes the protocol body of a markdown method, either appending a section or replacing the whole body. BeakerBot reads the current body first so it can preserve what is already there.
• edit_note replaces an entry's content in a running-log note, or updates the note's top-level description.
• edit_sequence replaces the base string of a stored sequence with bases you provide.
• edit_molecule_structure replaces the SMILES of a stored molecule with a SMILES you supply, with the on-device RDKit engine re-deriving the formula and weight.

Delete tools

BeakerBot can delete methods, projects, tasks and experiments, notes, sequences, molecules, and purchases. Every delete tool shows a destructive confirm card before running and moves the object to Trash rather than erasing it immediately. BeakerBot only calls a delete tool when you clearly ask to remove a specific object, never speculatively.

Workflow macros

A workflow macro is a saved, named sequence of BeakerBot steps you replay with one /command. Where a plan is reasoned out on the spot for a single request, a macro is a plan you kept so a recurring routine becomes repeatable without retyping it every time.

Macros are captured from a finished BeakerBot run. After a multi-step plan completes, a Save as macro button opens the macro editor, where you can give the macro a name (which becomes its /token in the slash menu), write a description, reorder steps, toggle individual steps off (kept but skipped at run time), or remove steps entirely. A step whose args captured a date at recording time shows a "fixed date" marker so deterministic replay is transparent rather than invisible.

Macros are also authorable from scratch in the editor. You open the macro editor, add steps from the tool picker (every tool in the registry minus navigation noise is available), give each step a label, and save. At run time, selecting the macro from the /slash menu replays the steps in order using the same gated approval path as a normal plan. Destructive steps still show a hard-stop confirm before executing.

Macros are stored per user in your data folder (users/<handle>/beakerbot_macros/) and are personal by default. When no folder is connected, macros live in memory for the session.

Inline record-set results browser

When a turn resolves two or more records (from a search, a list, a summary, or a lab digest), a record-set browser renders below the assistant reply. You do not invoke it; it appears automatically when the tool returns a set. The browser has a searchable, type-filterable rail on the left and a rich preview pane on the right. Clicking a row swaps the preview in place without a popup, and an Open full button opens the object through the standard popup or navigation path. The preview reuses the same embed pipeline as the rest of the app, so a note previews as a note card, a sequence as its map ribbon, a molecule as its 2D structure, and so on. In narrow panels the two columns collapse to a single column with a list and detail toggle.

For two to four records the widget shows a compact tabbed view. For five or more it shows the full searchable rail. A single returned record renders as an inline chip in BeakerBot's reply text rather than a widget. BeakerBot's reply for a multi-record result gives only the count and a one-line headline; it never lists the names in prose, because the widget already shows them.

Context awareness

Each page in ResearchOS publishes a context snapshot to BeakerBot describing what the user currently has open and, when relevant, what is selected, for example the Data Hub analysis the user is looking at or the phylogenetic tree they have open in the Studio. BeakerBot reads this snapshot at the start of every turn. When you say "this" or "the t-test" or "this result", BeakerBot resolves to the selected item directly from the context rather than asking for clarification. If no context matches your request, it falls back to asking through button choices rather than guessing.

Summary suite

BeakerBot can produce structural roll-ups across every record type without counting or tallying anything itself. The engine owns every count, every date grouping, and every total. BeakerBot relays what the tool returned and narrates it in one tight paragraph. It never counts records in its own reasoning or derive a status verdict.

• Experiments (summarize_experiments): runs, finished, overdue, and finishing this week, filtered by period, owner, or project.
• Notes (summarize_notes): counts, by-owner and by-month tallies, entry total, and recent notes with their first entry heading. Structural only, BeakerBot will not summarize what your notes found or concluded.
• Projects (summarize_projects): task counts by status, percent complete, next due date, blocked and overdue flags.
• Purchases (summarize_purchases): total spend, vendor breakdown, pending orders. Every dollar figure is echoed verbatim from the tool's pre-formatted display string, never re-summed or reformatted.
• Inventory (summarize_inventory): what is low, what is out, what is expiring, what is expired, recently touched stocks.
• Lab digest (lab_digest): a cross-type week-in-review composing the per-type aggregates into one digest covering experiments, notes, purchases, and what is scheduled next.

After a summary, BeakerBot can offer to save it as a note. On your confirmation, it drafts a structured note from the aggregate (counts and dates only, no invented findings) and shows you the draft for approval before writing.

Period filters use a token ("this_week", "last_month", "this_quarter") that the engine resolves to exact dates. Owner and project filters accept plain names; the engine tolerates case differences and small typos. You never have to look up a user ID or a project ID.

Data Hub analysis tools

BeakerBot can run the full statistical analysis suite available in the Data Hub directly from the chat. It identifies the right table from your words, asks you to pick groups when needed (through button choices, not free-text re-entry), calls the engine, and returns one short verdict line plus a live embed of the result. Every number comes from the engine. BeakerBot never computes a statistic, a p-value, a coefficient, or a test result itself.

Available from the chat: unpaired and paired t-tests, one-way ANOVA with Tukey comparisons, Mann-Whitney U and Wilcoxon signed-rank, Kruskal-Wallis, repeated-measures ANOVA with sphericity corrections, random-intercept mixed model, multiple linear regression, simple logistic regression, ROC and AUC, dose-response curve fitting (4PL and 5PL), global fitting across several curves, Cox proportional-hazards regression, Grubbs outlier screening, chi-square and Fisher exact tests, nested t-test and nested ANOVA, two-way ANOVA, and Kaplan-Meier survival with log-rank and Gehan-Breslow-Wilcoxon. BeakerBot can also create a Data Hub table from data you paste or describe, apply any of the five deterministic transforms, and run multi-step wrangling recipes (joins, group-by, pivot, filter, and more). It can also make bar and dot-plot figures for any table.

BeakerBot can help you choose the right test through a guided wizard if you ask. It walks through a short button sequence (what are you comparing, how many groups, paired or independent) and then recommends and runs the test, delegating the actual assumption checks and test selection to the engine.

Sequence and cloning tools

BeakerBot can compute the melting temperature of an oligo, translate a sequence, take a reverse complement, find open reading frames, and design primer candidates, using the same nearest-neighbor Tm model and Primer3 parameter windows the Sequences workbench uses. It can fetch a gene or accession from NCBI, extract a feature from a stored sequence by name or coordinates, run a Gibson or NEBuilder HiFi overlap assembly over two or more fragments, and run a restriction-enzyme digest and ligation, assembling the correct product from the computed junctions. It can also assemble a multi-FASTA file from sequences in your library for download and use in an external tree-building pipeline.

Every biological operation is run by the engine. BeakerBot never computes a base, a junction, an overhang, a Tm, or an assembled product. If you ask it to translate a codon table from memory, it refuses and calls the translation tool instead.

PDF paper-reproduce analysis

Attaching a PDF to the chat triggers the paper-reproduce flow. BeakerBot extracts the paper text and proactively offers four outputs.

• Summary to a note (draft_paper_summary): a faithful, structural summary of what the paper studied, what was done, and what was reported, drafted as a note for your approval. It states only what the paper says, never interprets or judges the findings.
• Methods verbatim to catalog (extract_paper_method): the paper's methods section pulled into your Method library as a markdown protocol, with every number, temperature, cycle count, tool name, and version quoted verbatim from the source and the exact source passage included so you can verify against the paper.
• Tree-building pipeline (generate_tree): when the paper describes a phylogenetic pipeline, a runnable recipe covering alignment, trimming, model selection, and tree inference, for you to run on your own sequences. The recipe is generated by the catalog engine, not invented by BeakerBot.
• Figure style match (match_figure_style): when you crop a figure from the attached PDF using the Pick figure button, the cropped image reaches BeakerBot as a vision attachment. BeakerBot reads the visual style of the figure (layout, branch-length rendering, color palette, aligned tracks) and applies that style to your own saved tree in the Phylogenetics Tree Studio.

Resumable plan card

When the NEXT_PUBLIC_BEAKERBOT_PLAN_STEPS flag is on, approved plans run one step at a time and render a live card in the chat thread. The card ticks each step as done, running, or queued. If a plan stops mid-run, the card shows the stopped step and offers Resume (continue from that step) or Cancel (drop the remaining steps). This lets you correct a problem and pick up where the plan left off rather than restarting from the beginning. When the flag is off, plans free-run from start to finish as a single turn without the per-step card.

Smart Data Binding (chat door)

When you ask BeakerBot about adding metadata or annotations to a phylogenetic tree (for example "what data can I overlay on this tree" or "annotate this tree with the location column"), BeakerBot calls suggest_tree_overlays. This tool ranks the Data Hub tables in your folder by how many of the tree's tip labels they can join, and opens the Smart Data Binding wizard inline below the reply. The wizard lets you pick columns and chart types and apply them to the tree, without leaving the chat. BeakerBot relays the ranked tables and join rates as facts from the tool. If no table joins the tree's tips, it says so plainly rather than pretending the wizard appeared. The wizard and the Tree Studio it connects to are described in detail on the Phylogenetics page.

Finding your work

BeakerBot has two ways to locate a record you refer to by name. The first is search_my_work, which searches all record types concurrently by title, heading, and metadata and returns a ranked list of matches. When a match is found, BeakerBot calls the appropriate read tool to fetch the body before answering. The second is search_full_text, which deep-searches the full body of every note and method protocol for a string or regular expression. BeakerBot confirms the exact search term with you before running the body scan.

When a tool returns a found artifact, BeakerBot ends its reply with a reference chip so you can open the object in place with one click. Notes, tasks, and experiments open their popup without leaving the chat; other types navigate to the page.

Chemistry and literature tools

BeakerBot can search PubChem for a compound by name, formula, or CID, list matching results with the CID and molecular weight, and then import the compound into your molecule library. It can also search Europe PMC for papers by topic or keyword, list the most relevant results with DOIs, and offer to add them to a note. It never invents a paper, a DOI, an author, or a year. Only what the search returns is cited.

User preferences

You can tell BeakerBot standing preferences it should apply by default: "remember that I always use Phusion polymerase" or "my default buffer is 10x CutSmart". BeakerBot stores these with remember_preferenceand applies them without being reminded on subsequent turns. You can retract a preference with "forget that" or "stop remembering X". Only preferences you explicitly state are stored; BeakerBot never infers or invents one.

Inline object embeds in replies

BeakerBot replies can include live visual embeds of objects in your folder. A link on its own line renders as a block embed, a rich in-place card: a Data Hub analysis result with its verdict and statistics, a figure SVG, a molecule 2D structure, a sequence feature ribbon, or a data table preview. A link mid-sentence renders as a compact clickable chip. BeakerBot only emits an embed when it has a real ID from a tool result, never a fabricated one. The embed reflects the current computed state of the object, so the figure or result you see is always live, not a screenshot.

Connection to the rest of the app

BeakerBot can navigate to any page in ResearchOS, read the interactive elements on that page, and spotlight a control with a highlight bubble. This means you can ask "where do I add a method?" and BeakerBot scrolls to and highlights the New Method button rather than describing where it is in prose. When a control you want is on a different page, BeakerBot navigates first and then highlights. It reads the live page rather than guessing from a static map.

BeakerBot also works across the Sequences workbench, Data Hub, Phylogenetics Tree Studio, Methods library, and the experiment and project surfaces, using the same engines those surfaces use rather than reimplementing anything separately.
